Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Şimdi başvurun

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Min sipariş miktarı : 50 adet Ambalaj bilgileri : PE torbası veya plastik kutu ve çizgi film kutusu
Teslim süresi : 3-5 iş günü Ödeme koşulları : Western Union, T/T, L/C
Yetenek temini : Günde 30000pcs
Menşe yeri: Guangzhou, Çin Marka adı: JQ/OEM/Customize
Sertifika: ISO 9001,ROHS CE-EMC FCC SDOC Model numarası: Fiber optik pigtail

Detay Bilgi
Başvuru: FTTH FTTB FTTX Ağı Bağlayıcı tipi: SC UPC
Uzunluk: 3 Metre veya Özelleştirilmiş Renk: özelleştirilmiş
Kablo çapı: 0.9/2.0/3.0mm Ferrule son yüzü: PC/UPC/APC
Ceket malzemesi: PVC/LSZH/PE Ürün adı: Fiber optik pigtail
Verici dalga boyu: 1310nm Öğe: Optik fiber yama kablosu
Fiber tipi: G.652D/G.657A1/G.657A2 Ağ: 4g, 5g.
Elyaf Hayır: 1 (simpleks) Ürünler: OM4 SC-SC 12Core Fiber Optik Yama Kablosu
Fiber sayıları: 9/125um, 50/125um, 62.5/125U Dönüş Kaybı: > 50dB (UPC)/> 60dB (APC)
Kablo Çapası: 2,0 3,0 mm Başlık: APC
Lehçe Türü: UPC'den UPC'ye dönüştürücü Kablo uzunluğu: 1m/2m/3m/5m/10m/özelleştirilmiş
Fiber modu: Tek mod Kablo tipi: Tek modlu/çok modlu
Çekirdek sayısı: Tek çekirdekli Dalga boyu: 1260-1650nm
İsteğe bağlı konektörler: LC/SC/FC/ST İç: Seramik
Parlatma: PC veya UPC Özellikler: IL&RL'de Yüksek Performans
İletken sayısı: 1 Ceket: PVC/LSZH
Vurgulamak:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Ürün Açıklaması

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

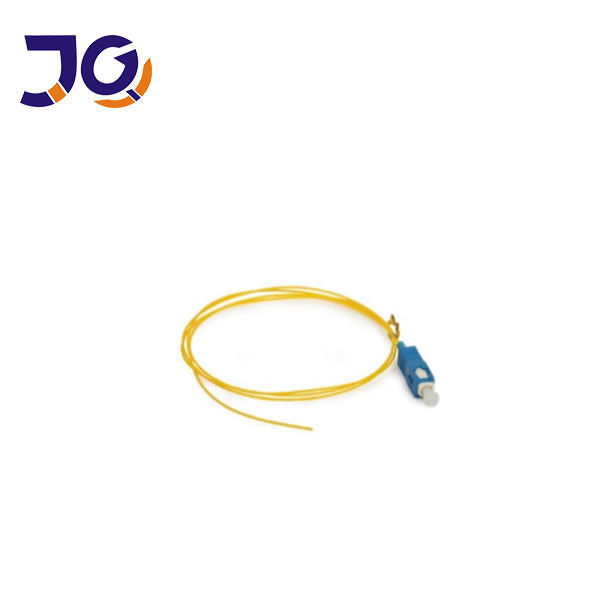

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

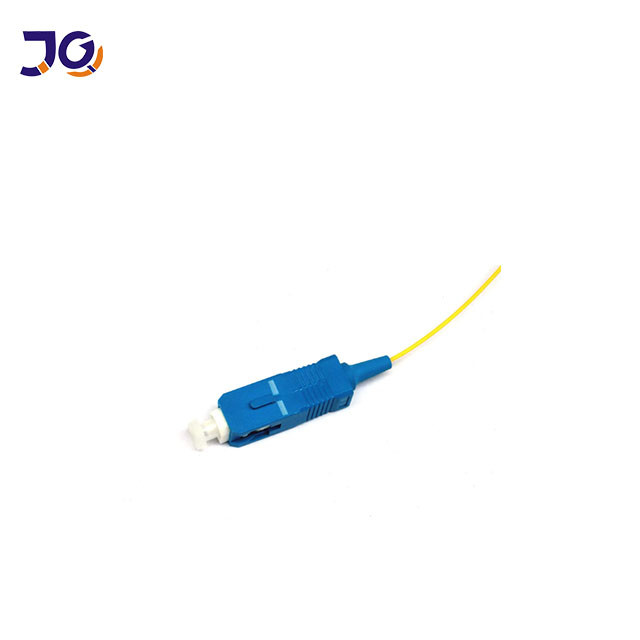

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

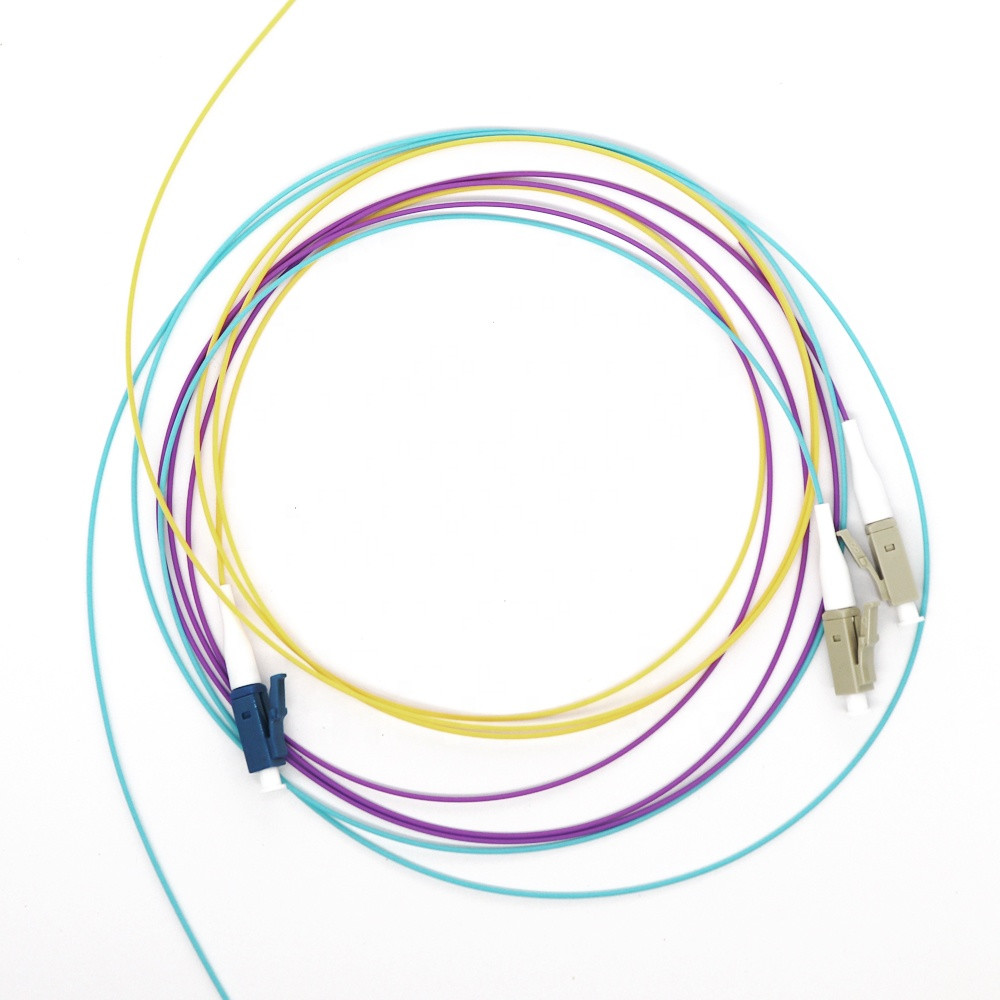

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
