SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing

50 adet
MOQ
Inquiry for price
fiyat
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Başvuru: FTTH FTTB FTTX Ağı
Bağlayıcı Türü: SC UPC
Kablo çapı: 0,9/2,0/3,0 mm
Ürün adı: Fiber Optik Pigtail
Kablo çapı: 2.0mm, 3.0mm, 3.5mm
Elyaf Çapı: 9/125μm, 50/125μm, 62.5/125μm
Lif Alight: V-Groove Fiber Hizalama
Vurgulamak:

SC UPC multimode fiber pigtail

,

0.9mm FTTH fiber optic cable

,

low loss fiber patch cord
Temel bilgiler
Menşe yeri: Guangzhou, Çin
Marka adı: JQ/OEM/Customize
Sertifika: ISO 9001,ROHS CE-EMC FCC SDOC
Model numarası: Fiber Optik Pigtail
Ödeme & teslimat koşulları
Ambalaj bilgileri: PE torbası veya plastik kutu ve çizgi film kutusu
Teslim süresi: 3-5 iş günü
Ödeme koşulları: Western Union, T/T, L/C
Yetenek temini: Günde 30000pcs
Ürün Açıklaması

12 Core SC UPC Fiber Optic Pigtail Multimode 0.9mm FTTH Cable



Product Introduction:
12 core SC UPC fiber optic pigtail is designed for fiber termination and splicing, providing stable and low-loss connections in telecom and data networks.



Key Features:
 SC UPC connectors with low insertion loss
 Multimode fiber 50/125 or 62.5/125 optional
 0.9mm compact cable design
 PVC or LSZH jacket for safety
 100% factory tested for performance
 Multiple core counts and connector types available



Applications:

  • FTTH and FTTB networks
  • Telecom and broadband systems
  • Data centers and server rooms
  • LAN WAN and CATV networks
  • Optical distribution and splicing systems


Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80

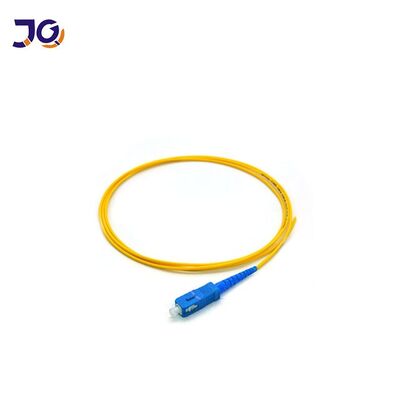

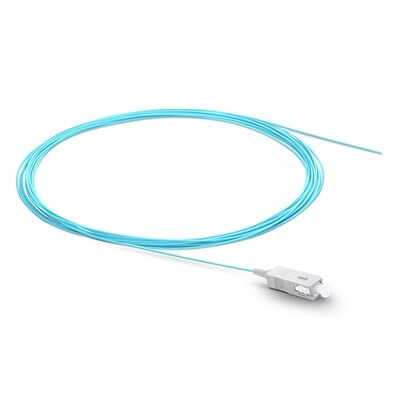

Detailed Image
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 0

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 1
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 2

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 3



Fiber Optic Pigtail FAQ



Q1: What is this pigtail used for?
A: It is used for fiber splicing, termination, and connection in networks.



Q2: What connector type does it use?
A: Standard SC UPC, with other connectors optional.



Q3: What fiber types are available?
A: Multimode (50/125, 62.5/125) and optional single-mode.



Q4: Is it safe for indoor use?
A: Yes, PVC or LSZH jackets are available for safety.



Q5: Is it tested before delivery?
A: Yes, all pigtails are 100% factory tested.
