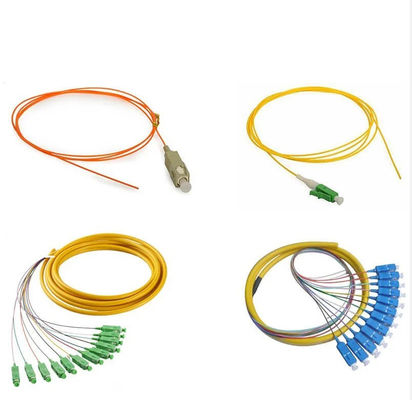

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

100 adet
MOQ
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
malzeme: LSZH/PVC
Kablo çapı: 0,9/2,0/3,0 mm
OEM ve Özel: Destek
Elyaf türü: SM,MM(50/125um,62,5/125um)
Renk: Turuncu, sarı, mavi, deniz mavisi
Kullanmak: FTTH
Bağlayıcı Türü: SC / LC / FC / ST / E2000
Konektör Cilası: UPC/APC/PC
Vurgulamak:

FTTH fiber optic pigtail SC APC

,

62.5/125um telecom fiber pigtail

,

SC APC connector fiber patch cord
Temel bilgiler
Menşe yeri: Çin
Marka adı: Jiqian/Customize/ OEM
Sertifika: ISO9001 ROHS CE-EMC FCC SDOC
Model numarası: fiber örgü
Ödeme & teslimat koşulları
Ambalaj bilgileri: paket karton
Teslim süresi: 2-4gün
Ödeme koşulları: Western Union, T/T, L/C
Yetenek temini: 2 günde 1000 adet
Ürün Açıklaması

FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks

Fiber Optic Pigtail Features

  • Compatible with SC, LC, FC, MU, ST, MT-RJ, and E2000 connectors

  • PC, UPC, APC, and SPC polishing options available

  • Optional cable diameters: 0.9 mm, 2.0 mm, 3.0 mm

  • Single mode (9/125) and multimode (50/125, 62.5/125) fiber options

  • Supports simplex and duplex configurations

  • Low insertion loss and high return loss

  • Good interchangeability and long service life

Fiber Optic Pigtail Applications

  • FTTH and FTTx access networks

  • Telecom and data center fiber termination

  • Optical distribution frames (ODF) and patch panels

  • LAN and WAN network installations

  • Fiber splicing and network maintenance

Size Information
Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
FTTH OEM 62 5 125um Fiber Optic Pigtail SC APC Connector for Telecom Networks 0
Size Information
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652D/G655/G657A1/G657A2
OM1
OM2/OM3/OM4
Fiber Diameter (um)
9/125
62.5/125
50/125
Cable OD (mm)
0.9/1.6/1.8/2.0/2.4/3.0
Endface Type
PC
UPC
APC
UPC
UPC
Typical Insertion Loss (dB)
<0.2
<0.15
<0.2
<0.1
<0.1
Return Loss (dB)
>45
>50
>60
/
Insert-pull Test (dB)
<0.2
<0.3
<0.15
Interchangeability (dB)
<0.1
<0.15
<0.1
Anti-tensile Force (N)
>70
Temperature Range (℃)
-40~+80

FAQ

1. Are you a real manufacturer?
Yes. We are a professional factory located in Guangzhou, China. Factory visits are welcome.



2. What is your minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are available to support new projects.



3. Can I get a sample?
Yes. Free samples are available. Customers only need to cover the express shipping cost.



4. What payment methods do you accept?
We accept T/T, L/C, Western Union, and PayPal.



5. What is the delivery time?
Normally 3–7 working days, depending on order quantity and product specifications.



6. Do you support customized products and logo?
Yes. We provide OEM & ODM services, including customized specifications and branding.
