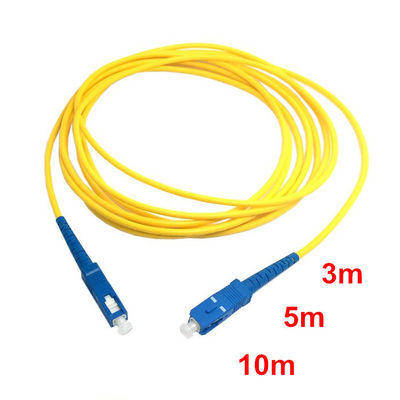

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper

50 adet
MOQ
Inquiry for price
fiyat
SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Malzeme: PVC/LSZH
Renk: sarı
Öğe: fiber optik yama kablosu
Tekrarlanabilirlik: ≤ 0,2 dB
Lif sayısı: Simpleks veya Dubleks
Kalite Kontrol: Göndermeden önce %100 test
Bağlayıcı Türü: SC/APC-SC/UPC
Ürün adı: Fiber Optik Yama Kablosu
Vurgulamak:

SC APC to SC UPC fiber optic patch cord

,

LSZH single mode optical cable

,

FTTH jumper with warranty
Temel bilgiler
Menşe yeri: Guangzhou, Çin
Marka adı: JQ/OEM/Customize
Sertifika: ISO 9001,ROHS CE-EMC FCC SDOC
Model numarası: SM-SX Bağlantı Kablosu
Ödeme & teslimat koşulları
Ambalaj bilgileri: Bir İhracat Karikatür kutusunda 100PCS
Teslim süresi: 5-8 iş günü
Ödeme koşulları: Western Union, T/T, L/C, Alipay
Yetenek temini: Günde 5000 adet
Ürün Açıklaması

SC APC to SC UPC Fiber Patch Cord 1m 2m 3m Single Mode 9/125µm LSZH Optical Cable



Product Features

  • Low insertion loss and high return loss for stable signal transmission.
  • Factory terminated and 100% tested for reliable performance.
  • Excellent repeatability and interchangeability for consistent connections.
  • Durable tight-buffer fiber with strong environmental adaptability.



Applications

  • FTTH and FTTx fiber optic networks.
  • Data centers and telecom equipment connections.
  • LAN, CATV, and broadband communication systems.



Optical Characteristics



Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



≤0.3dB



≤0.3dB



≤0.3dB



Return loss



≥40dB



≥50dB



≥60dB



≥35dB



Exchange



≤0.2dB



Repeatability



≤0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C



Technical Data



Type

Standard,Master



Style

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC



Fiber

Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3



Cable

Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH



Polishing Manner

UPC,SPC,APC(8°&6°)



Insertion Loss

≤0.1dB (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750

Return Loss

(Single mode)

UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750



Repeat ability

≤0.1dB



Operating temperature

-400 C° to 850 C°



Geometry Requirement

(Single mode)

Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1

Connector Type

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 0



SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 1





Recommed Products



SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 2



Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 3

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 4

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 5







SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 6





Factory Pictures

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 7
FAQ


Q: What fiber type does this patch cord use?
A: It uses 9/125µm single-mode optical fiber.



Q: What connector types are included?
A: The cable features SC/APC to SC/UPC connectors.



Q: What lengths are available?
A: Common lengths include 1m, 2m, and 3m, with custom lengths available.



Q: Is the cable factory tested?
A: Yes, each patch cord is tested for insertion loss and return loss.



Q: What applications is this patch cord suitable for?
A: It is widely used in FTTH, data centers, LAN, and telecom networks.
