Name: ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: ADSS-4C/12FC/24C/48C/96C/144C
Price: 168.32 USD
Availability: InStock

ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable

1km

MOQ

Inquiry for price

fiyat

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Kablo çapı: 9.7mm 、 10mm

Ceket Rengi: Siyah, beyaz, istek olarak

Çalışma sıcaklığı: -40 ℃ ~+70 ℃

Başvuru: Havai/hava, boru/kanal döşeme

kablo uzunluğu: 1km/2km/3km/4km/5km

Lif sayısı: 2-144 çekirdek

Depolama Sıcaklığı: -40°C~+85°C

Açıklık: 50/100/200/300/400m

Vurgulamak:

96 core ADSS fiber optic cable

all dielectric self supporting aerial cable

outdoor single jacket optical cable

Temel bilgiler

Menşe yeri: Guangzhou Çin

Marka adı: JQ/OEM/Customize

Sertifika: ROHS/ISO/CE/FCC

Model numarası: ADSS-4C/12FC/24C/48C/96C/144C

Ödeme & teslimat koşulları

Ambalaj bilgileri: Ahşap paket

Teslim süresi: 5-8 iş günü

Ödeme koşulları: L/C, T/T, Western Union, Alipay

Yetenek temini: Ayda 4500KM

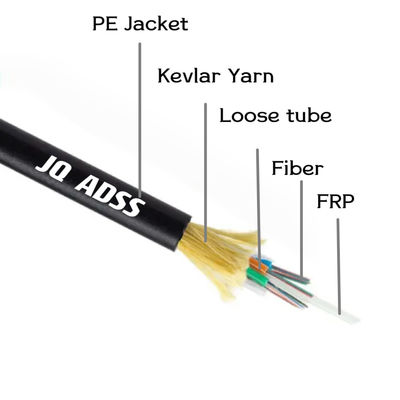

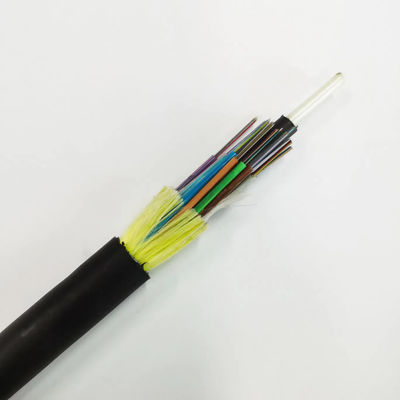

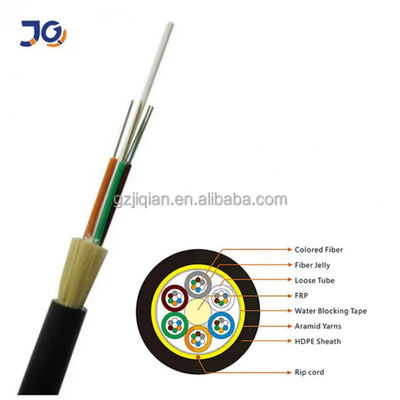

Fotoğraf Galerisi

ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable

Ürün Açıklaması

ADSS Aerial Fiber Optic Cable Single Mode FRP Loose Tube Long Span Outdoor Communication Cable

Product Features
• Loose tube stranded structure with FRP central strength member
• Aramid yarn reinforcement for high tensile strength
• Lightweight and small diameter design reduces wind and ice load
• Water-resistant filling compound for reliable fiber protection
• PE or AT outer sheath for strong weather and UV resistance

Application Scenarios
• Self-supporting aerial telecom networks
• High-voltage power line communication systems
• Long-distance backbone and LAN networks
• Outdoor broadband and infrastructure projects

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	13 10nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	um	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		um	≤12.0
8	Cable Cutoff Wavelength		μm	λcc≤1260
9	Attenuation(max.)	1550nm	dB/km	≤0.36
9	Attenuation(max.)	1310nm	dB/km	<0.22

FAQ

1. What is ADSS Fiber Optic Cable used for
ADSS cable is designed for aerial installation on power lines and communication networks without the need for metal support.

2. How many fiber cores are available
The cable typically supports 2 to 96 fiber cores depending on network capacity requirements.

3. Is ADSS cable suitable for outdoor environments
Yes it is designed with UV resistant and weatherproof materials for long term outdoor use.

4. What installation method does ADSS cable support
It is self supporting and can be installed directly on poles or towers without a messenger wire.

5. What fiber types are available
Common options include G652D and G657A1 single mode optical fibers.
