ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span

1km
MOQ
ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Elyaf Tipi: G652D tek mod veya isteğiniz olarak
Başvuru: Hava/kanal/ek yük
İletken Sayısı: 48 96 çekirdek
Yapı: Mahsur gevşek tüp
Çalışma Sıcaklığı: -40 ~ +60 C
Merkezi Güç Üyesi: FRP
Aralık: 80m 100m 200m 300m
Fiber markası: YOFC/Fiberhome/Fujikura/Corning
Temel bilgiler
Menşe yeri: Çin
Marka adı: Jiqian/Customize/ OEM
Sertifika: ISO9001 ROHS CE-EMC FCC SDOC
Model numarası: ADSS 96 çekirdekli 144 çekirdekli
Ödeme & teslimat koşulları

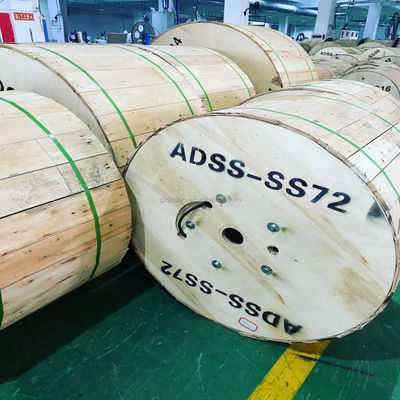

Ambalaj bilgileri: Ahşap davul/özelleştirilmiş
Teslim süresi: 2-4 gün
Ödeme koşulları: Western Union, T/T, L/C
Yetenek temini: Ayda 100km
Ürün Açıklaması

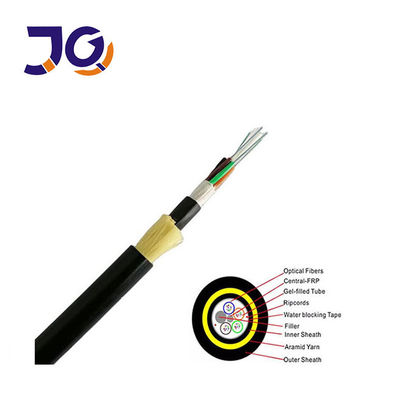

Non-Metallic Single Jacket ADSS Fiber Optic Cable
6 / 12 / 24 / 48 / 96 Core | G652D | 100–200m Span

Key Features

  1. All-Dielectric Design
    Non-metallic structure ensures excellent electrical insulation and resistance to electromagnetic interference

  2. Self-Supporting Structure
    No messenger or support wire required, reducing installation time and cost

  3. Single PE Jacket
    Durable outer sheath provides UV, moisture, and weather resistance

  4. Multiple Fiber Counts
    Available in 6 12 24 48 96 cores to meet different network capacities

  5. Optimized for Medium Span
    Suitable for 100m to 200m aerial span installations

Applications

  • Aerial fiber optic communication networks

  • Power transmission and distribution lines

  • FTTH and access networks

  • Urban and rural overhead installations



Technical Data:



Cable fiber count / 2~30 32~60 62~72
Structure / 1+5 1+5 1+6
Fiber style / G.652D
Central strength member material mm FRP
Diameter (average) 1.5 1.5 2.1
Loose Tube Material mm PBT
Diameter (average) 1.8 2.1 2.1
Thickness(average) 0.32 0.35 0.35
Max fiber/loose tube 6 12 12
Tubes color Full color identification
Fiber excess length % 0.7~0.8
Water resistance Material / Cable jelly
Inner sehath material mm MDPE
Inner sheath 0.9mm
Non-metallic strengthen components Material / Aramid Yarn
Outer sheath material mm MDPE
Outer sheath 1.8mm
Cable diameter(average) mm 10.9 11.5 12.1
Cable weight (Approximate) kg/km 95 110 120
Cable Sectional area mm2 93.31 103.87 114.99
Attenuation coefficient(Max) 1310nm dB/km 0.35
1550nm 0.21
Rated Tensile Strength(RTS) kn 6
Max allowed tension( MAT) kn 2.5
Annual average operating tension (EDS) kn 3.2
Young's modulus kn/mm2 7.8
Coefficient of thermal expansion 10-6/℃ 9
Crush resistance Long term N/100mm 1100
Short term 2200
Permission Bent Radius static mm 15 of OD
dynamic
20 of OD

ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span 0
ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span 1

FAQ

1. Are you a manufacturer or trading company?
We are a direct manufacturer with our own factory located in Guangzhou, China. Factory visits are always welcome.



2. What is the minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are supported, especially for new projects.



3. Do you offer samples?
Yes. Free samples are available. Customers only need to cover the shipping cost.



4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.



5. What is the delivery time?
Production time is usually 3–7 working days, depending on order quantity and specifications.



6. Can you provide OEM or customized products?
Yes. OEM and ODM services are available, including customized structures, specifications, and logos.



7. Which fiber brands are available?
We can supply fibers from Corning, YOFC, FiberHome, and other major brands upon request.
