ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

1km
MOQ
Inquiry for price
fiyat
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Kablo çapı: 9.7mm 、 10mm
Ceket Rengi: Siyah, özelleştirilmiş
Çalışma sıcaklığı: -40 ℃ ~+70 ℃
Başvuru: Havai/hava, boru/kanal döşeme
Lif sayısı: 2-144 çekirdek
Depolama Sıcaklığı: -40°C~+85°C
Bükme Yarıçapı: Statik: 10D/Dinamik: 20D
Açıklık: 50/100/200/300/400 Metre
Vurgulamak:

ADSS fiber optic cable 96 core

,

aerial outdoor ADSS cable

,

single jacket ADSS cable
Temel bilgiler
Menşe yeri: Guangzhou Çin
Marka adı: JQ/OEM/Customize
Sertifika: ROHS/ISO/CE/FCC
Model numarası: ADSS-4C/12FC/24C/48C/96C/144C
Ödeme & teslimat koşulları
Ambalaj bilgileri: ahşap paket veya karton kutu
Teslim süresi: 5-8 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 4500KM
Ürün Açıklaması

ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable



Product Introduction:

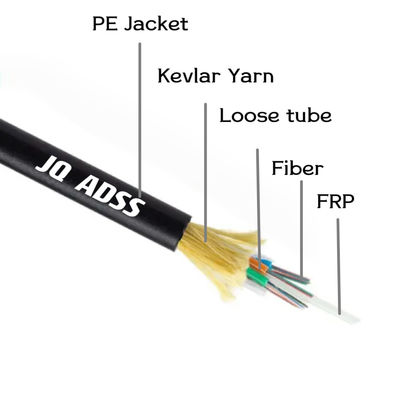

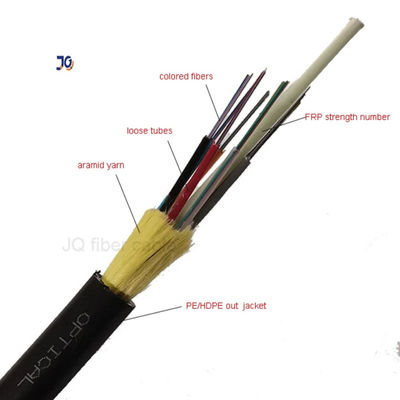

ADSS fiber optic cable features a loose tube stranded structure with FRP strength member, designed for reliable aerial installation without metallic components.



Key Features:

  •  All dielectric design with FRP central strength member
  •  Loose tube structure with water-resistant filling compound
  •  Aramid yarn reinforcement for high tensile strength
  •  PE or AT outer sheath for outdoor protection
  •  Lightweight structure for aerial installation



Applications:

  • Overhead aerial fiber optic installations
  • Power line communication networks
  • Long-distance backbone transmission
  • Telecom and broadband networks

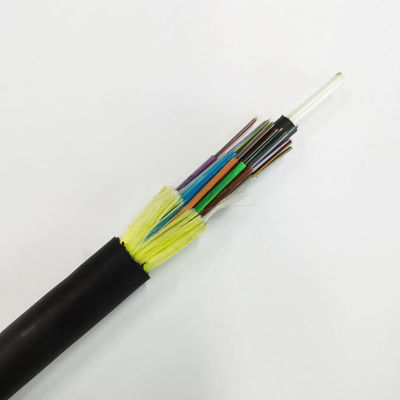

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 0

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 1



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22



ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 2

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 3



ADSS Fiber Optic Cable FAQ



Q1: What is ADSS fiber optic cable used for?
A: It is used for aerial installations on utility poles and power lines.



Q2: What does ADSS stand for?
A: ADSS stands for All Dielectric Self Supporting.



Q3: Does the cable contain metal components?
A: No, it uses a non-metallic FRP strength member.



Q4: What provides tensile strength in the cable?
A: Aramid yarn reinforcement provides high tensile strength.



Q5: What outer sheath options are available?
A: PE or AT outer sheath for different outdoor environments.
