MGTSV 12 24 Core Flame-Retardant Armored Mining Fiber Optic Cable Double Jacket

Ürün Açıklaması

12 24 Core Single Armor Double Jackets Flame-Retardant MGTSV Mining Fiber Optic Cable

Product Description

MGTSV is designed for coal, gold, and iron ore mines. It offers flame-retardant and rodent-resistant properties, making it ideal for accident-prone mining areas to maintain stable communication and reduce losses.

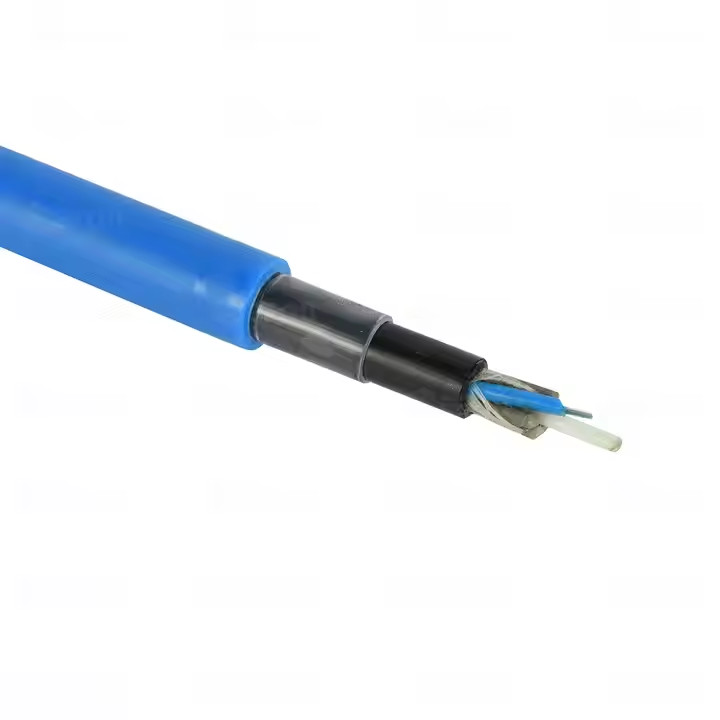

The steel armor protects against rat bites and provides strong impact resistance. Its double-jacket structure ensures excellent moisture, crush, and flame resistance, while the loose tube and waterproof design guarantee safe underground operation.

Fiber G652D:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		μm	£0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		μm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

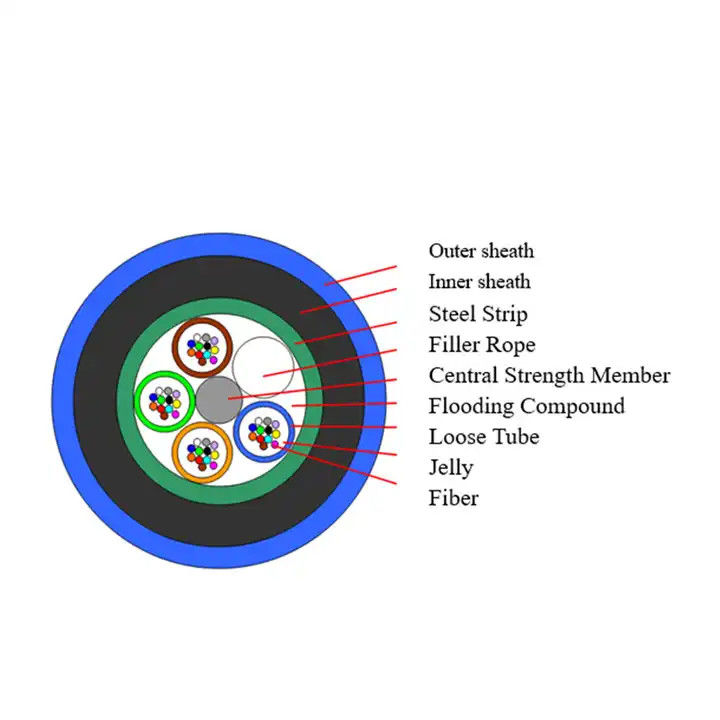

Cable performance

Item		Parameters
Fiber Count		48
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green,Brown, Gray,White,Red,Black,Yellow, Purple,Pink,Aqua
Loose tube	Dimension	2.0mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Filler	Material	PE
	Color	Black
Central Strength Member	Dimension	1.5mm
	Material	Steel wire
Armoured	Material	Aluminium
Inner jacket	Material	PE
	Color	Black
Outer jacket	Material	LSZH
	Color	Blue

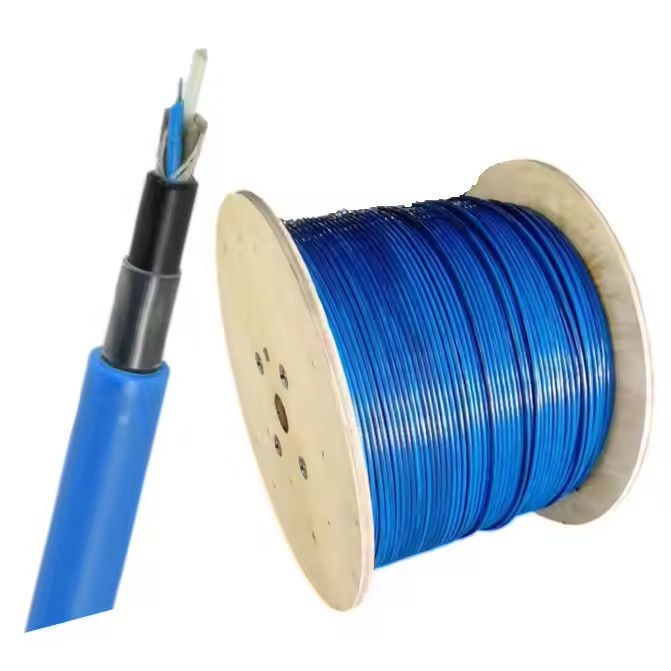

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements

Shipping:By sea LCL/FCL









Exhibition



Certification:





FAQ

Are you a real manufacturer?
Yes, we have over 13 years of manufacturing experience.



What fiber brand do you use?
YOFC / Fiberhome.



Do you provide samples?
Yes, free samples are available; you only pay for shipping.



Can I place a small order?
Yes, we support small and trial orders.



What is the warranty period?
25–30 years for outdoor fiber optic cables.



What certifications do you have?
ISO9001, FCC, ROHS, CE.



What is your delivery time?
Usually 5–7 working days.



What payment methods do you accept?
T/T, L/C, Western Union.



Do you offer OEM/ODM service?
Yes, customized products and logos are available.
