GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core

1km
MOQ
GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Menşe yeri: GUANGZHOU, ÇİN
Marka adı: Jiqian
Model numarası: GYFTY83
Fiber sayısı: 4-288
Kılıf: PE/LSZH, Siyah renk veya beğendiğiniz renk
Uygun Sıcaklık: -40°C +70°C
Elyaf Tipi: Tek mod G652D
Sertifika: ISO9001 ROHS CE FCC
Üreticisi: Evet
Zırhlı Fiber Optik Kablo: Evet, FRP Zırhlı
OEM: Mevcut
Vurgulamak:

Non-metallic FRP armored fiber optic cable

,

Anti-rodent underground fiber optic cable

,

24 core FRP armored fiber cable

Temel bilgiler
Menşe yeri: Çin
Marka adı: Jiqian
Sertifika: ISO9001 ROHS CE FCC
Model numarası: GYFTY83-48C
Ödeme & teslimat koşulları
Ambalaj bilgileri: Ahşap davul
Teslim süresi: Genellikle 7 gün, sipariş miktarına bağlıdır
Ödeme koşulları: T/T, üretime başlamak için %30 depozito, teslimattan önce %70 ödenecek
Ürün Açıklaması

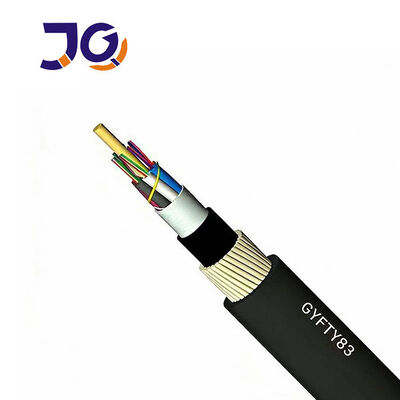

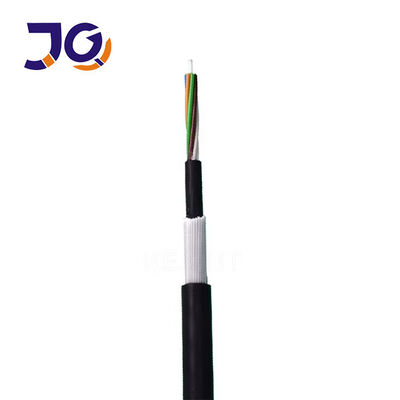

GYFTY83 Fiber Optic Cable

GYFTY83 is an all dielectric, non-metallic outdoor fiber optic cable with FRP strength member and PE outer sheath.
It features rodent resistance, lightning protection, and anti-corrosion, making it ideal for high-voltage areas, duct installation, and underground applications.
This cable adopts stranded loose tube structure, available in 4–144 cores, supporting single-mode transmission.
It provides stable performance, long service life, and reliable signal transmission for telecommunication, broadband, and power communication projects.


GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 0
GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 1




Application Scenarios

Suitable for outdoor duct, direct burial installation

• Applied in high-voltage power stations, power grids and areas with strong electromagnetic interference

• Ideal for lightning-prone areas due to all-dielectric non-metallic structure

• Widely used in places with serious rodent damage, such as underground pipe gallery, railway, highway, mountain areas

• Applied in petroleum, chemical industry, mining and other corrosive environments


Temperature Range -40°C~+70°C
Bending Radius:(Dynamic/Static):20D/10D
Long term/Short term Tension:1000/3000N
Long term/Short term Crush:1000/1500N



Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100

Fiber Testing

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 2

Cable testing

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 3





Company profile:

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 4

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 5

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
