GYTA33 Submarine Fiber Optic Cable 48/96/144 Core for Long Distance Communication

Ürün Açıklaması

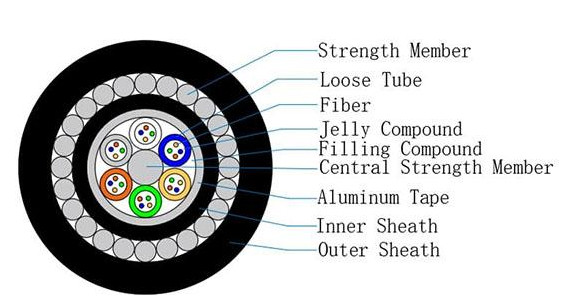

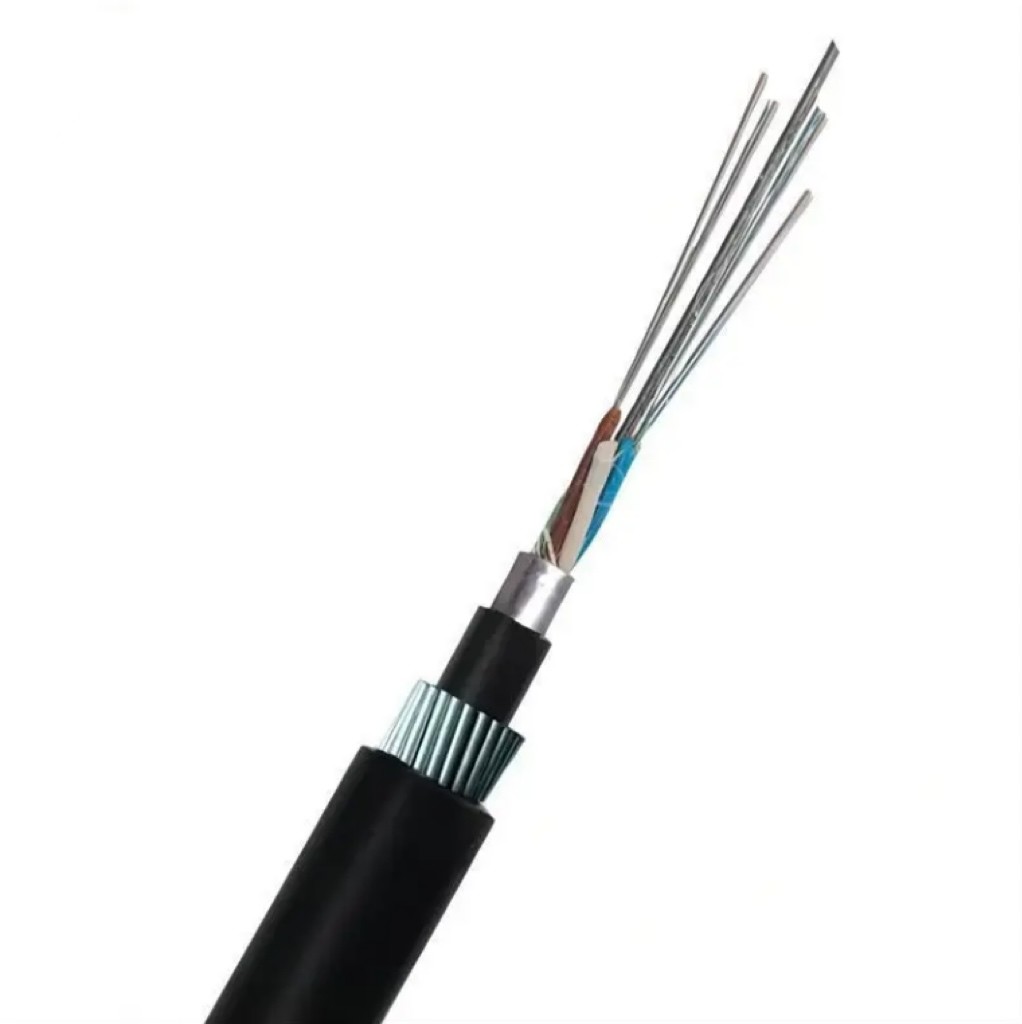

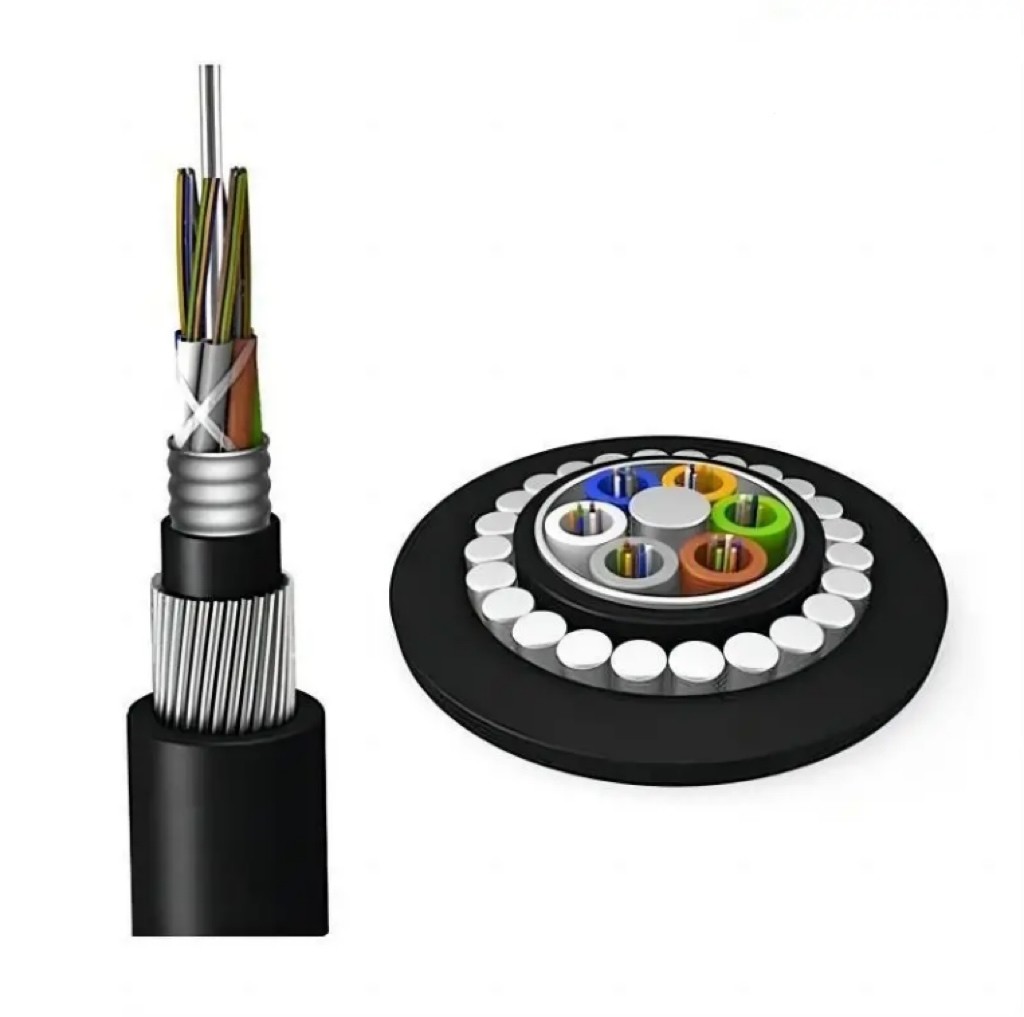

GYTA33 Underwater Fiber Optic Cable
Durable steel-wire armored cable with double-jacket protection, designed for submarine, river-crossing, and direct-buried installations.

Fiber Type: G652D SM | Cores: 12–144 | Structure: Loose tube

Features: High mechanical strength, moisture and corrosion resistance, long service life.

Applications: Telecom backbones, underground networks, oil, gas, and power communication.



Fiber Parameters:



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100



Lead time:Usually 7days,it depends on order quantity

Shipping methods:by sea LCL/FCL,It depends on order quantity
