GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center

2km
MOQ
Inquiry for price
fiyat
GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Marka adı: Jiqian/Customize
Fiber sayısı: 12 24 48 Çekirdek
Kılıf: LSZH/PVC
Başvuru: Telekomünikasyon
Sertifika: ISO9001 ROHS CE-EMC FCC SDOC
Sıcaklık: -40 ila +70 ° C
Kullanım: Kapalı bina kabloları
Elyaf: Çok çekirdekli Fujikura/ YOFC/ Fujikera G652D
Vurgulamak:

indoor fiber optic cable FTTH

,

indoor fiber optic cable LSZH

,

indoor fiber optic cable tight buffer
Temel bilgiler
Menşe yeri: Guangzhou, Çin
Marka adı: Jiqian/Customize/ OEM
Sertifika: ISO9001 ROHS CE-EMC FCC SDOC
Model numarası: Gjfjv
Ödeme & teslimat koşulları
Ambalaj bilgileri: Ahşap davul
Teslim süresi: 3-5 gün, sipariş miktarına bağlı.
Ödeme koşulları: L/C, T/T, Western Union, Alipay
Yetenek temini: ayda 4500
Ürün Açıklaması



24 Core GJFJV Indoor Fiber Optic Cable G652D Single Mode LSZH Tight Buffer FTTH LAN Data Center Cable



Product Features

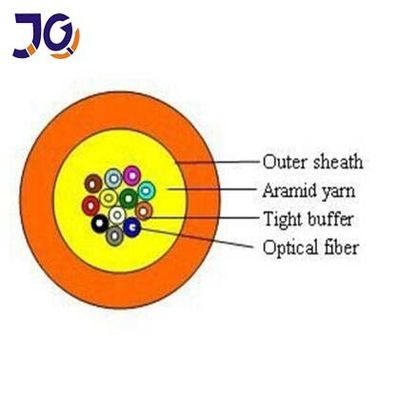

  • Tight-buffered fiber structure for easy stripping and splicing
  • Aramid yarn reinforcement for strong tensile strength and durability
  • Flame-retardant LSZH or PVC jacket for safe indoor installation
  • Low attenuation and stable signal transmission
  • Compact and lightweight design for flexible indoor deployment

Applications

  • FTTH indoor cabling systems
  • Data centers and server rooms
  • LAN and enterprise networks
  • Telecom equipment connections
  • Indoor backbone and distribution networks
Technical Parameters
Cable
Count		 Outside
Diameter

Tight

buffer
Diameter

 Weight Minimum
allowable Tensile
Strength
(N)		 minimum allowable
Crush Load
(N/100mm)		 Minimum Bending
Radius
(MM)		 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (℃)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

GJFJV Indoor Fiber Optic Cable FTTH Simplex Duplex LSZH Tight Buffer Telecom Network and Data Center 0

FAQ – GJFJV Indoor Fiber Optic Cable



Q1: What is GJFJV fiber optic cable used for?
A: It is mainly used for indoor FTTH networks, data centers, LAN systems, and telecom equipment connections.



Q2: What fiber types are available?
A: It supports single-mode fibers such as G652D and can also be customized with other fiber types.



Q3: What jacket materials are available?
A: The cable can be produced with PVC or LSZH jackets for different indoor safety requirements.



Q4: What is the maximum fiber count?
A: GJFJV cables can support up to 24 cores or customized fiber counts.



Q5: Is the cable easy to install and splice?
A: Yes, the tight-buffered design makes stripping, splicing, and installation simple and efficient.
