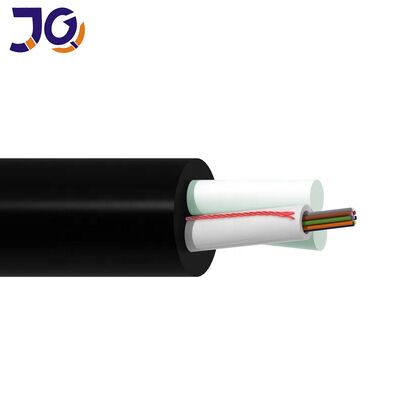

ASU Aerial Fiber Optic Cable 6–12 Core Mini ADSS Long Span Cable
Product Introduction:
ASU aerial fiber optic cable features a compact unitube design and all-dielectric structure, providing reliable performance for overhead installations with spans of 80–120 meters.
Key Features:
- Self-supporting design without messenger wire
- Lightweight unitube structure for easy installation
- Supports aerial spans of 80–120m
- All-dielectric construction resistant to lightning and EMI
- UV and moisture resistant outer sheath
Applications:
- Aerial telecom network deployment
- FTTH and FTTx broadband distribution
- Rural and suburban fiber projects
- Building-to-building and campus connections
- Metropolitan area network installations

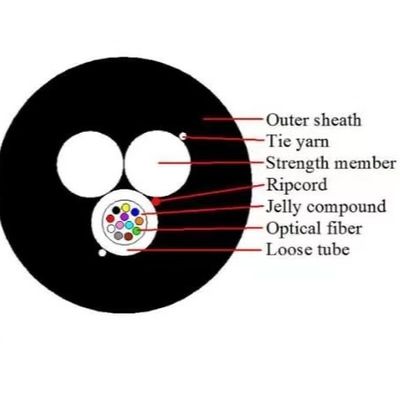

Structure
-
Fiber Type: 2–12 core single-mode fibers, compliant with G652D / G657A1 / G657A2
-
Cable Design: Central loose tube filled with water-blocking gel for moisture protection
-
Fiber Brand: Premium YOFC fibers for stable optical performance
-
Armor: All-dielectric mini ADSS construction, non-armored for lightweight installation
-
Strength Member: Dual FRP rods to enhance tensile strength and span capability
-
Outer Sheath: Black UV- and moisture-resistant PE jacket for reliable outdoor use
| Parameter |
Specification |
| Model |
ASU Mini ADSS |
| Fiber Type |
Single-mode G652D |
| Core Count |
6, 12 |
| Cable Structure |
Unitube, loose tube stranded |
| Strength Member |
Non-metallic (all-dielectric) |
| Self-Supporting Span |
80–120 m |
| Outer Sheath |
UV- and moisture-resistant PE |
| Operating Temperature |
-40°C to +70°C |
| Installation Environment |
Overhead aerial, outdoor |
| Applications |
FTTH, FTTx, MAN, building-to-building, rural/suburban networks |
| Features |
Lightweight, high tensile strength, EMI & lightning resistant, weatherproof |
ASU Fiber Optic Cable – Span Options
ASU 80
Designed for spans up to 80 meters, ASU 80 is a great choice for aerial installations in cities and suburbs. With pole spacing around 40 meters, it ensures stable support and clear signal transmission for FTTH and FTTx networks. Its lightweight, all-dielectric design allows safe deployment near energized power lines without risk of interference.
ASU 100
Engineered for up to 100-meter spans, ASU 100 performs well in rural and semi-urban areas where poles are spaced farther apart. It offers strong tensile capacity and consistent optical performance over longer distances, making it ideal for telecom lines, campus links, and inter-building connections.
ASU 120
Built for demanding installations, ASU 120 supports spans up to 120 meters, suitable for wide-gap pole layouts along highways, bridges, and river crossings. Its rugged all-dielectric structure resists UV, moisture, and mechanical stress, delivering reliable operation in harsh outdoor environments.
Additional Information
-
Compatible with single-mode fibers: G652D / G657A1 / G657A2
-
Lightweight design simplifies aerial installation
-
Recommended for FTTH, FTTx, metropolitan, and backbone network projects
Keywords: ASU Fiber Optic Cable, Aerial Self Supporting Cable, Outdoor ADSS Alternative, Long Span Fiber, 80m 100m 120m Cable, FTTH Fiber Optic, Telecom Network Cable

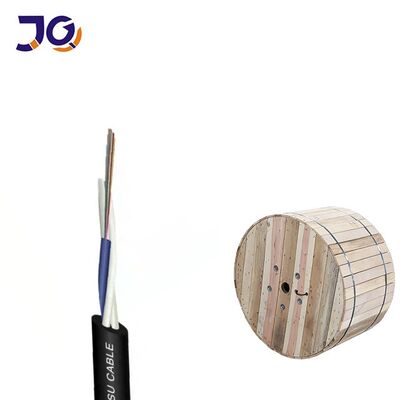

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Company Picture
ASU Aerial Fiber Optic Cable FAQ
Q1: What is ASU fiber optic cable used for?
A: It is used for aerial fiber optic installations in telecom and FTTH networks.
Q2: How many fiber cores are available?
A: Common options include 6 and 12 cores.
Q3: What span length does it support?
A: It supports aerial spans from 80m to 120m.
Q4: Does it require a messenger wire?
A: No, it has a self-supporting design.
Q5: Is it suitable for outdoor environments?
A: Yes, it has a UV and moisture resistant outer sheath.
