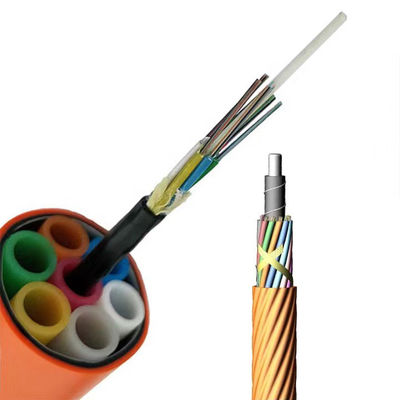

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket

Şimdi başvurun

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket

Min sipariş miktarı :	1km	Ambalaj bilgileri :	Ahşap davul
Teslim süresi :	5-8 İŞ GÜNÜ	Ödeme koşulları :	L/C, T/T, Western Union
Yetenek temini :	günde 30km

Menşe yeri:	Guangzhou, Çin	Marka adı:	JQ/OEM/Customize
Sertifika:	ISO9001 ROHS CE-EMC FCC SDOC	Model numarası:	GCYFY/GCYFTY

Detay Bilgi
Fiber sayısı:	4-144	Elyaf Tipi:	Tek mod/çok mod
Ceket:	PE/PVC/LSZH/HDPE/MDPE	Renk:	Siyah veya turuncu veya Özelleştirilmiş
Ürün Adı:	Hava Üflemeli Mikro Kablo	Uzunluk:	2km veya özelleştirilmiş uzunluk
Kurulum:	Havai veya Kanal Borusu Döşenmesi	İletken sayısı:	≥ 10
Vurgulamak:	24 core air blown fiber cable , 96 core LSZH optical fiber cable , outdoor micro fiber optic cable

Ürün Açıklaması

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Product Description

Model: GCYFY
Structure: Loose-tube, non-metallic reinforced, non-armored micro cable designed for air-blown or pulled installation in pre-laid microducts.

Features

Non-metallic strength member; lightweight and flexible
Loose-tube design with excellent mechanical and temperature performance
Optimized for air-blown installation to maximize duct utilization
Easy network expansion and rapid deployment

Applications

FTTH feeder and drop segments
Air-blown installation from branch points to access points
Suitable for backbone, metro, and access networks

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 0

Fiber & Tube Color

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 3

Delivery Length

• Standard length: 4,000m; other lengths are also available.

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 4
