GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install
GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install
Şimdi başvurun

GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install

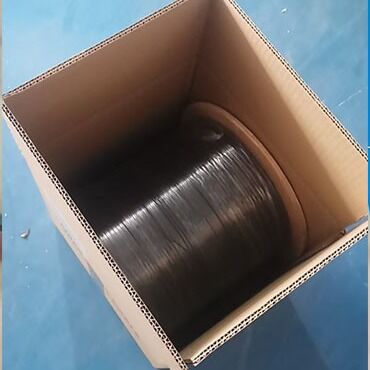

Min sipariş miktarı : 1000m Ambalaj bilgileri : Ahşap davul
Teslim süresi : 2-4 gün Ödeme koşulları : Western Union, Moneygram, T/T, L/C
Yetenek temini : 2 gün başına 100km
Menşe yeri: Guangzhou, Çin Marka adı: Jiqian/Customize/ OEM
Sertifika: ISO9001 ROHS CE-EMC FCC SDOC Model numarası: GJXH GJXCH GJXFXCH

Detay Bilgi
Malzeme: LSZH /PVS Elyaf Tipi: G657A1/A2/G652D/G657A1/G657A2
Renk: Beyaz /Siyah Merkezi Güç Üyesi: FRP dayanıklılık elemanı/çelikli tel
Oem: Mevcut Kurulum: Evin Dış Mekanına FTTH Fiber
Fiber markası: YOFC/Fiberhome/Fujikura/Corning Fiber sayısı: 2-48 çekirdek
Vurgulamak:

steel wire FTTH drop cable

,

G657A fiber outdoor cable

,

LSZH flame-retardant fiber optic cable

Ürün Açıklaması

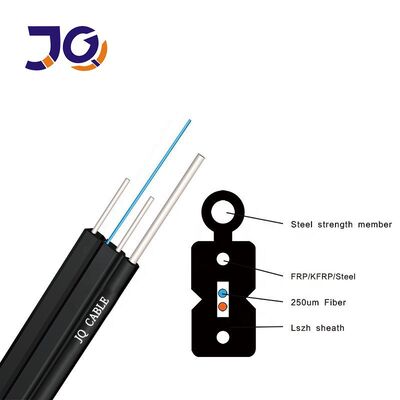

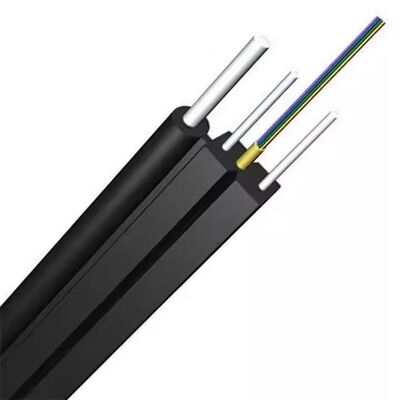

FTTH Drop Cable GJYXCH / GJYXFCH



Models:

  • 2 Core Self-Support GJYXCH G.657A2

  • 6 Core FTTH Outdoor Drop Cable

  • 1/2/4 Core Steel Wire FTTH Drop Cable GJYXFCH G.657A Fiber

Features:

  • Soft, bendable, and easy to deploy and maintain

  • Small diameter, lightweight, and practical

  • FRP (Fiber Reinforced Plastic) or steel wire strength member for excellent anti-electromagnetic performance

  • Environmentally friendly LSZH/Flame-retardant sheath, low smoke, zero halogen

Applications:

  • Access network cable from outdoor to indoor in customer premises

  • Indoor/outdoor building cable in premises distribution systems

  • Suitable for FTTH deployments and terminal systems



Optical Characteristics


Item
 Technology parameter
Cable type GJYXCH-1B6 GJYXCH-2B6 GJYXCH-4B6
Cable specification 5.2×2.0
Fiber type 9/125 (G.657A2)
Fiber counts 1 2 4
Fiber color Red Blue, orange Blue, orange, green, brown
Sheath color Black
Sheath material LSZH
Cable dimension mm 5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km Approx. 19.5
Min. bending radius mm 120
Min. bending radius mm
(Excluding messenger wire)		 10 (Static)
25 (Dynamic)
Attenuation dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N 600
Long term tensile N 300
Short term crush N/100mm 2200
Long term crush N/100mm 1100
Operation temperature ℃ -20~+60



GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 0






GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 1



GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 2
Factory:

GJYXFCH Steel Wire Outdoor FTTH Drop Cable 1 2 4 Core G657A Fiber Flexible LSZH Flame-Retardant Easy-Install 3

company profile:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.COMPANY PROFILE
