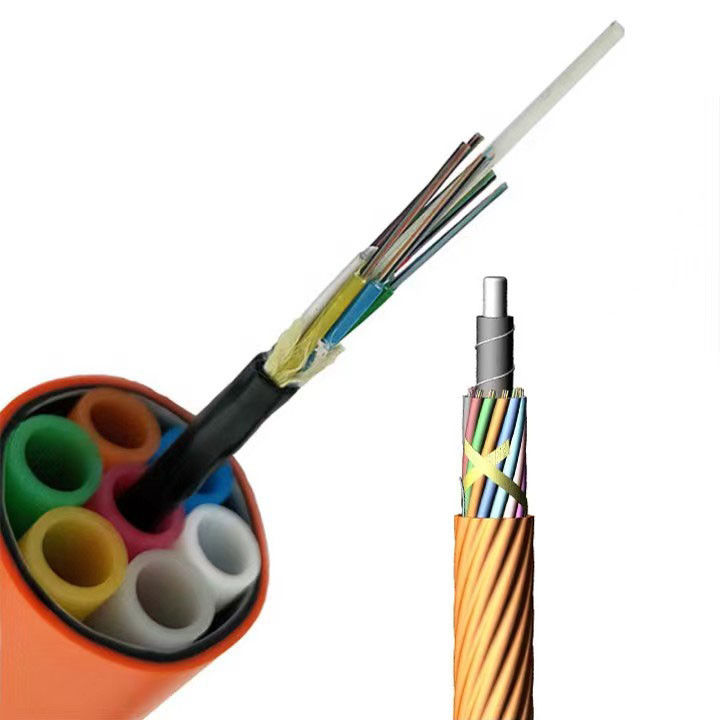

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable

Şimdi başvurun

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable

Min sipariş miktarı :	1km	Ambalaj bilgileri :	Ahşap davul
Teslim süresi :	5-8 iş günü	Ödeme koşulları :	L/C, T/T, Western Union
Yetenek temini :	günde 30km

Menşe yeri:	Guangzhou, Çin	Marka adı:	JQ/OEM/Customize
Sertifika:	ISO9001 ROHS CE-EMC FCC SDOC	Model numarası:	GCYFY/GCYFTY

Detay Bilgi
Fiber sayısı:	4-144	Elyaf Tipi:	Tek mod/çok mod
Ceket:	PE/PVC/LSZH	Renk:	Siyah
Ürün adı:	Hava Üflemeli Mikro Kablo	Model numarası:	Gcyfy
Uzunluk:	2km veya özelleştirilmiş uzunluk	Yapı:	Mikro Kablo
Vurgulamak:	Micro duct fiber optic cable , Air blown fiber cable 96 core , High density outdoor fiber cable

Ürün Açıklaması

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features

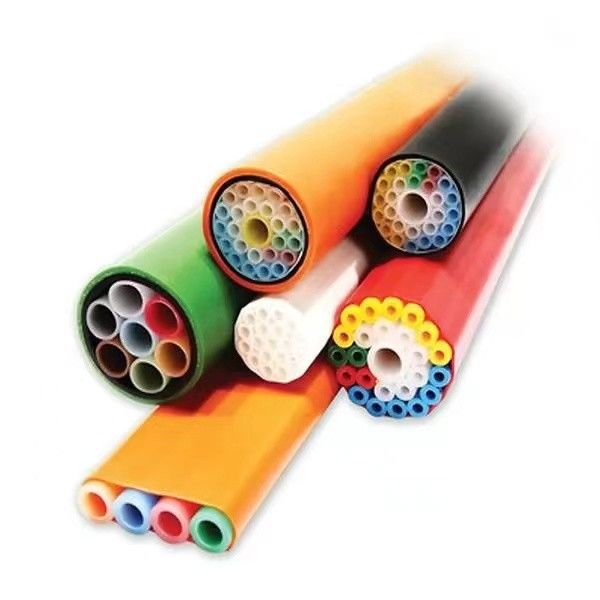

GCYFY air-blown micro cable uses a non-metallic, no-armor design with loose-tube stranding. It can be pulled or air-blown into pre-installed microducts, maximizing duct utilization and allowing fast, scalable network expansion.

Applications
Ideal for FTTH feeder and drop segments, connecting branch points to access points by air-blown installation. Also suitable for backbone, metro, and access networks.

Product Description

Model: GCYFY

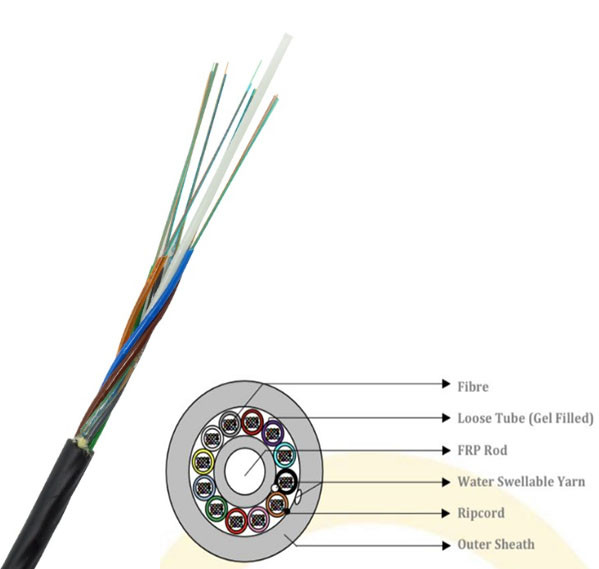

Cable Cross-section Available

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 0

Fiber & Tube Color

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 3

Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 4

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 5

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 6

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 7
