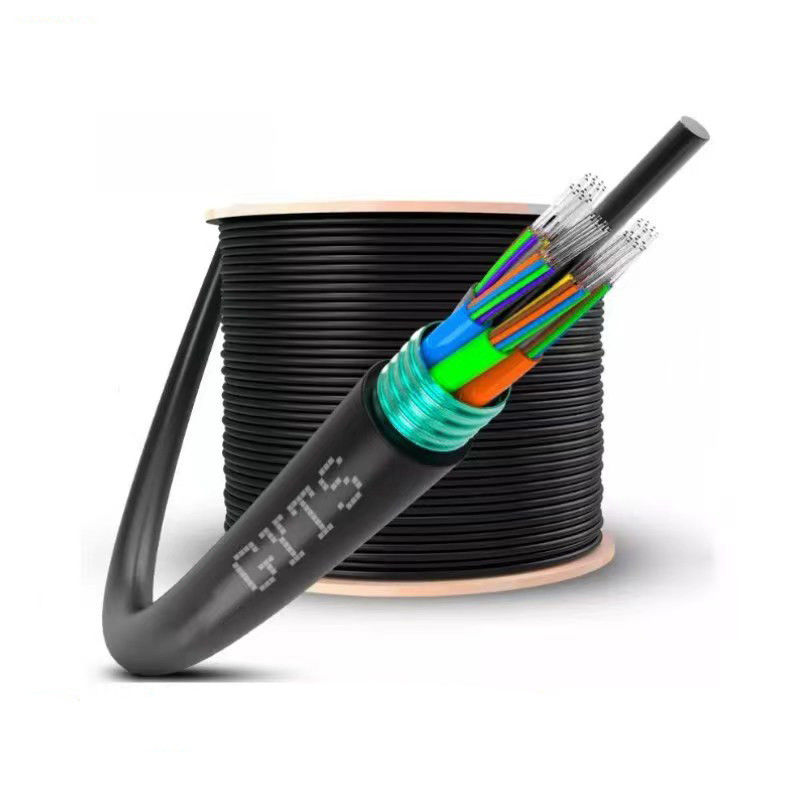

GYTS 2–288 Core Armored Underground Fiber Optic Cable for Direct Burial

Min sipariş miktarı : 1km Ambalaj bilgileri : Ahşap davul
Teslim süresi : 3-5 gün, miktarınıza bağlıdır Ödeme koşulları : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini : 60000km/ay
Menşe yeri: Guangdong Çin Marka adı: Jiqian/Customize/ OEM
Sertifika: CE/ISO9001/RoHS/FCC Model numarası: GYTS-48B1

Detay Bilgi

Elyaf Tipi: G652D/G657A1/G657A2 Fiber sayısı: 2-288 Çekirdekler
Ceket: PE, MDPE, LSZH, PVC, HDPE Renk: Siyah
Uzunluk: 2km, 5km veya özelleştirilmiş uzunluk Uygulama: Kanal/ doğrudan mezar
Tüp tipi: Gevşek tüp Fiber markası: YOFC/ Corning/ Fiberhome
Vurgulamak:

GYTS armored fiber optic cable

,

underground direct burial fiber cable

,

288 core outdoor fiber optic

Ürün Açıklaması

High-Performance GYTS Armored Underground Fiber Optic Cable



Product Features (Simplified)

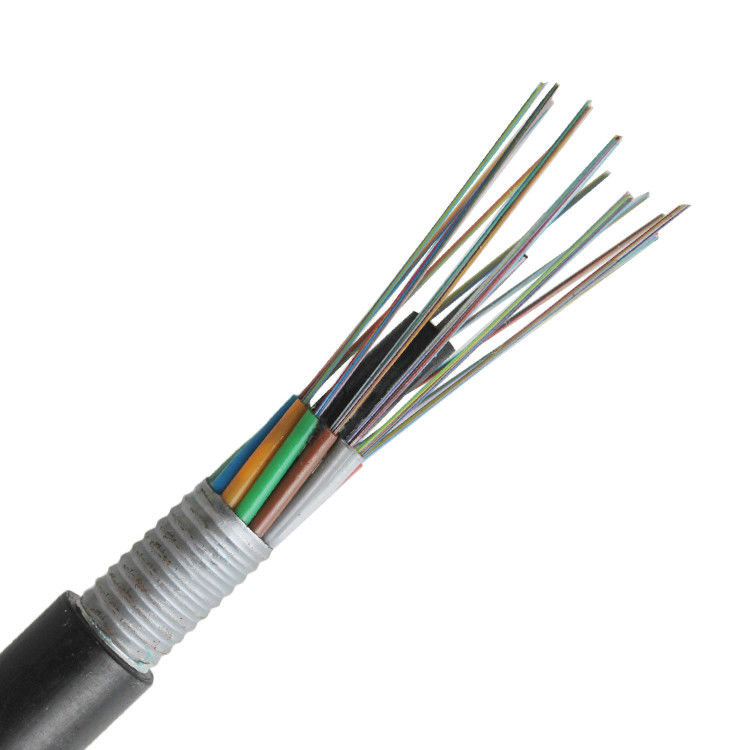

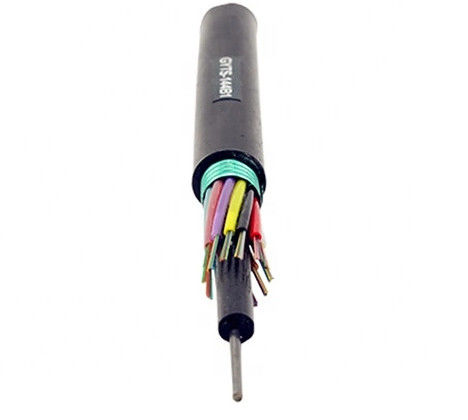

  • Structure:Loose tubes or fillers are stranded around a central metal strength member.

  • Enhanced Protection:The cable core is reinforced with corrugated steel tape and covered with a durable PE outer jacket.

  • Fiber Type:Tubes are made of heat-resistant materials and contain double-coated single-mode or multi-mode fibers.


Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS
98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS
122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS
146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D






GYTS 2–288 Core Armored Underground Fiber Optic Cable for Direct Burial 0

GYTS 2–288 Core Armored Underground Fiber Optic Cable for Direct Burial 1





Fiber Tube Color:
GYTS 2–288 Core Armored Underground Fiber Optic Cable for Direct Burial 2

Packaging Details
  • Wooden reel options: 1000m, 2000m, 3000m, or custom lengths.

  • Inner packaging in fumigated wooden drum, outer covered with polyethylene sheet, sealed with sturdy wooden battens.

GYTS 2–288 Core Armored Underground Fiber Optic Cable for Direct Burial 3
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)




FAQ (Frequently Asked Questions)

1. What is a fiber optic cable?
It uses light to transmit data, providing faster speed and higher bandwidth than copper cables.



2. What types of fiber optic cables do you offer?
Armored, drop, and loose tube cables for underground, aerial, and FTTH applications.



3. What core counts are available?
2, 4, 6, 8, 12, 24, 32, 48 cores. Custom options are available.



4. What’s the difference between single-mode and multi-mode fiber?

  • Single-mode: For long-distance and high-speed transmission.

  • Multi-mode: For short-distance and high-capacity connections.

5. How are the cables packaged?
On fumigated wooden drums with PE wrapping and reinforced battens.



6. How do I choose the right cable?
Select based on core count, fiber type (SM/MM), and installation environment. We can help recommend the best option.



7. What is the lead time?
7–10 days for standard orders; longer for custom orders.



8. Do you provide installation services?
No, but we can recommend reliable installers.



9. How can I get a quote?
Email jiqian@gzjqofc.com
with core count, cable type, and quantity.
