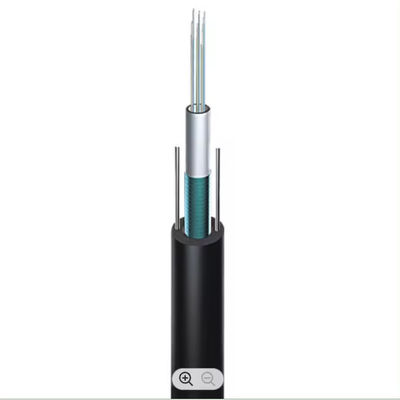

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

Şimdi başvurun

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

Min sipariş miktarı :	1km	Fiyat :	60-200USD/KM
Ambalaj bilgileri :	Ahşap davul	Teslim süresi :	3-5 gün, miktarınıza bağlıdır
Ödeme koşulları :	L/C, D/A, T/T, Western Union, MoneyGram	Yetenek temini :	60000km/ay

Menşe yeri:	Guangdong, Çin	Marka adı:	Jiqian/Customize/ OEM
Sertifika:	CE/ISO9001/RoHS/FCC	Model numarası:	GYXTW-4/6/8/12B1

Detay Bilgi
Fiber sayısı:	2-24 çekirdek	Güç üyesi:	Çelik iplik
Garanti:	25 yıl	Moq:	1km
Oem:	Evet	Zırhlı:	Evet
fabrika:	Evet	Yapı:	Mahsur gevşek tüp
Çekirdek yok:	24 çift	Bağlayıcı tipi:	SC, LC, FC, ST veya özelleştirilmiş
Dış çap:	10.5 ~ 18.8+_0.5mm	Çekirdeği güçlendirmek:	FRP
Fiber kodu:	Gyta53	Sıcaklık:	-20 derece ~+70 derece
Kablo Dış Dame:	8,9-10,2 mm	Kılıf:	HDPE/LSZH
Zırh malzemesi:	Oluklu alüminyum bant	Zırh:	çift çelik bant
Gevşek Tüp Malzemesi:	PBT veya Jöle	Ceket:	PE, MDPE, LSZH, PVC
Döşeme modu:	kanal/anten	Öğe:	Gyta
Dış ceket materyali:	Pe	Başvuru:	Açık iletişim
UV direnci:	Mevcut	Su geçirmez:	Evet
Yapı:	Gevşek tüp	Aramid Elyaflar:	ithalat veya yerli
Aralık:	100m, 150m, 200m	Tüp başına lifler:	12-144
Döşeme Yöntemleri:	Hava	Kablo rengi:	Siyah
Model:	PDLC-PDLC	Kurulum:	Kendini destekleyen hava, hava, kanal
Vurgulamak:	single mode armored fiber optic cable , outdoor HDPE fiber optic cable , aerial duct optical cable

Ürün Açıklaması

Product Description

OEM Outdoor Duct Aerial GYXTW Armored Fiber Optic Cable Single Mode Multi Mode G652D 2 4 6 8 12 24 Core

Product Description :

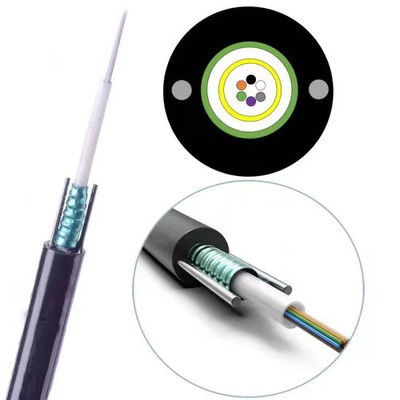

GYXTW optical cable, also called central loose tube or light armored fiber optic cable, is one of the most widely used outdoor cables. It is typically available in 2 to 12 cores based on the fiber color code.

GY stands for outdoor cable design
X indicates the central loose tube structure
T means the tube is filled with water-blocking gel
W represents the polyethylene outer sheath with steel wire reinforcement

Thanks to its armored structure and durable HDPE jacket, GYXTW cable is ideal for aerial, duct, and direct-buried installation. This makes it a reliable choice for FTTx, long-distance communication, and backbone network projects.

Characteristics

Parallel steel wire strength members provide extra protection and stability.
Central loose tube with filling compound protects fibers and steel parts from moisture.
Corrugated tape armor delivers excellent crush resistance and durability.
Compact, lightweight construction for easy handling.
Simple and efficient installation.

Operating Temperature

From -40°C to +60°C, ensuring stable performance in harsh environments.

Applications

Designed for outdoor optical distribution networks.
Perfect for aerial, duct, and pipeline installation.
Suitable for long-haul transmission and LAN communication projects.

PRODUCT SPECIFICATIONS

Item		Parameters
Fiber Count		12
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube	Dimension	2.2mm±0.1mm
	Material	PBT
	Color	nature
Filler	MATERIAL	none
Filler	color	none
Strength Member	Dimension	0.7mm±0.05mm
Strength Member	material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip
Outer jacket	Material	PE
Outer jacket	color	black

Related Products

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a technology-driven enterprise focused on the R&D, production, and sales of communication products, with full import and export rights. With over 8 years of industry experience, we are an ISO 9001:2015 certified manufacturer specializing in fiber optic cables and patch cords.

We provide OEM services and custom cable design to match specific project requirements. Our product range covers optical fiber cables and accessories widely used in telecom networks, and our products are exported to markets including Egypt, Pakistan, the Maldives, India, Brazil, and Chile.

Q: Are you a factory or trading company?
A: We are a direct factory manufacturer.
Q: What is your MOQ?
A: The minimum order is 1 km for fiber optic cables.
Q: Which fiber brands do you use?
A: We work with Corning, YOFC, Fiberhome, and other trusted brands.
Q: Do you accept small orders?
A: Yes, we support small orders and new projects to help customers start their business.
Q: What is the lead time?
A: Normally 5–7 days after order confirmation, depending on quantity.
Q: Can you customize products and logos?
A: Yes, OEM customization and logo printing are available.
Q: What are your payment terms?
A: 30% deposit by T/T, L/C, or Western Union, with balance before shipment.
