Optical Fiber Cutter Handheld Optical Fiber Cleaver
Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver Optical Fiber Cutter Handheld Optical Fiber Cleaver
Şimdi başvurun

Optical Fiber Cutter Handheld Optical Fiber Cleaver

Min sipariş miktarı : 1 parça Ambalaj bilgileri : Plastik kasanın içinde, dışarıda cartion
Teslim süresi : 3-5 gün, sipariş miktarına bağlı. Ödeme koşulları : L/C, T/T, Western Union, Alipay
Yetenek temini : Ayda 2000 Parça
Menşe yeri: ÇİN Marka adı: JQ/OEM
Sertifika: ISO 9001 Model numarası: FC-20

Detay Bilgi
Başvuru: Ağ aracı Ürün adı: Optik fiber kesicisi
Moq: 1 adet Garanti Zamanı: 1 yıl
Bölünmüş Uzunluk: Tek lif: 8 ~ 20mm Uygulanabilir Fiber Kablo: Tek Elyaf: 0.25 ~ 3.0mm
Tipik bölünmüş açı: 0,5 dereceden az
Vurgulamak:

handheld optical fiber cleaver

,

optical fiber cutter tool

,

fiber optic cleaver with warranty

Ürün Açıklaması

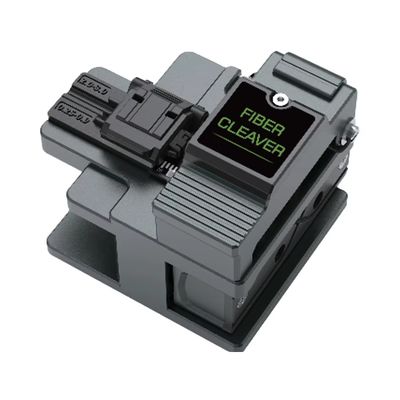

FC-20 Handheld optical fiber cleaver

Blade life up to 48,000 times
Typical cleaving angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Palm-sized design, lightweight and portable
All-in-one holder is suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Optical Fiber Cutter Handheld Optical Fiber Cleaver 0

Optical Fiber Cutter Handheld Optical Fiber Cleaver 1Optical Fiber Cutter Handheld Optical Fiber Cleaver 2





Product configuration
Fiber cleaver FC-20
1
Carrying case
1
Quick guide
1

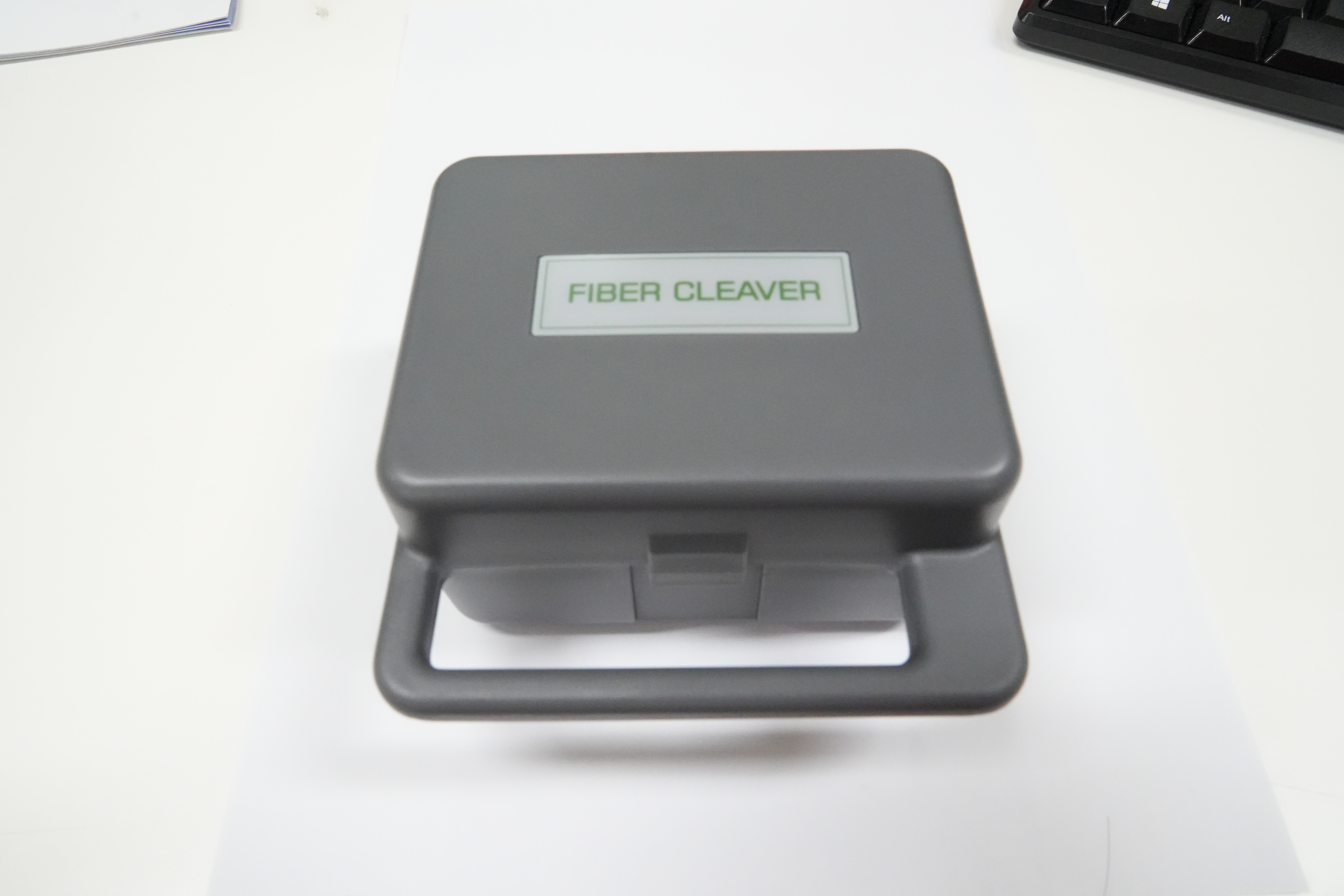

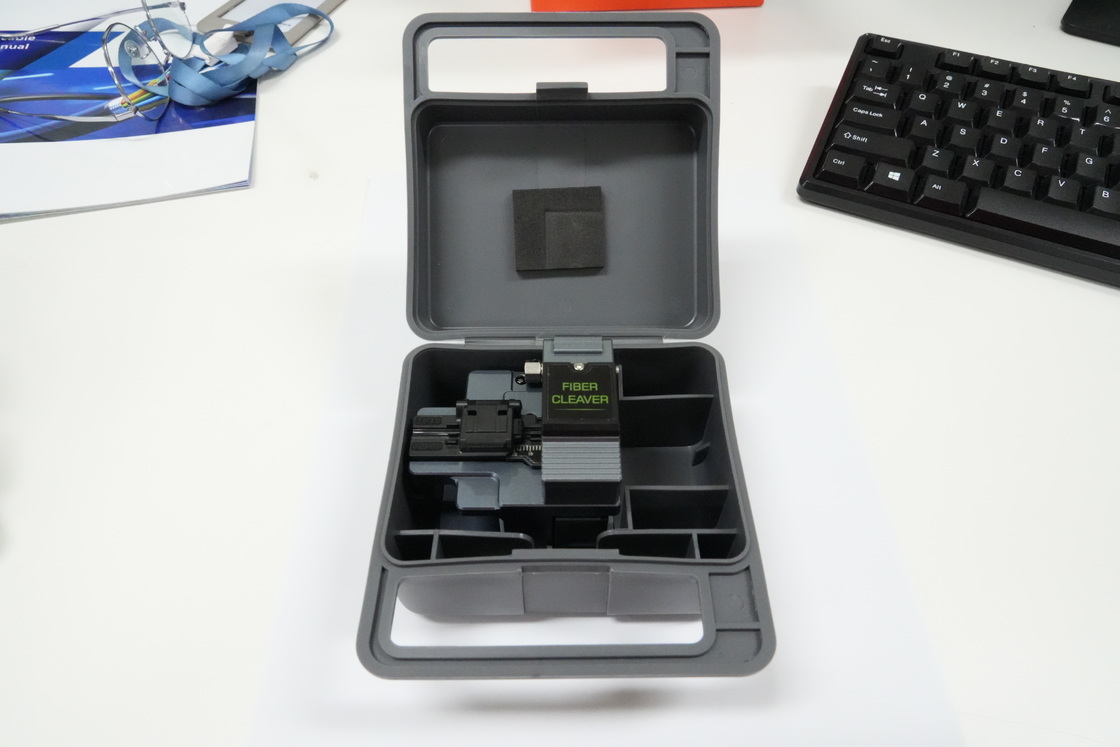

Professional carrying case

The slot design in the box prevent damage to the cutting blade body caused by shaking and collision,and can effectively protect the cutting blade



Optical Fiber Cutter Handheld Optical Fiber Cleaver 3



Specification

Brand Name
JQ/HAISO/OEM
Place of Origin
Guangzhou China
Use
ftth
Warranty Time
1year
Product name
Optical Fiber Cleaver
No. of Fiber
Single fiber
Ladding Diameter
125μm
Cleaved Length
Single fiber: 8~20mm
Applicable Fiber Cable
Single fiber: 0.25 ~ 3.0mm
Typical Cleaved Angle
Less than 0.5 Degrees
Typical Blade Life
Total 48,000 fiber cleaves (replaceable)
Auto Return
Pre-fitted
MOQ
1Pcs
Dimension
55W *55D*50H(mm)
Weight
235g



Optical Fiber Cutter Handheld Optical Fiber Cleaver 4





Optical Fiber Cutter Handheld Optical Fiber Cleaver 5

Optical Fiber Cutter Handheld Optical Fiber Cleaver 6Optical Fiber Cutter Handheld Optical Fiber Cleaver 7







We Support OEM and Customize products



Service: On-time deliveries,best price and high quality product.
We Support OEM and Customize products,Welcome to your inquiry!
Factory address: No 43 Lixin 9th Road Xintang Town Zengcheng District Guangzhou city China

Welcome to your inquiry!
Contact me at +86 18122384553
