96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Şimdi başvurun

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Min sipariş miktarı :	1km	Ambalaj bilgileri :	Ahşap davul
Teslim süresi :	5-8 iş günü	Ödeme koşulları :	L/C, T/T, Western Union
Yetenek temini :	günde 30km

Menşe yeri:	Guangzhou, Çin	Marka adı:	JQ/OEM/Customize
Sertifika:	ISO9001 ROHS CE-EMC FCC SDOC	Model numarası:	GCYFY/GCYFTY

Detay Bilgi
Fiber sayısı:	4-144	Fiber tipi:	Tek mod/çok mod
Ceket:	PE/PVC/LSZH/HDPE/MDPE	Renk:	Siyah veya turuncu veya Özelleştirilmiş
Ürün adı:	Hava Üflemeli Mikro Kablo	Model numarası:	GCYFY/GCYFTY
Uzunluk:	2km veya özelleştirilmiş uzunluk	Kurulum:	Hava veya kanal
İletken sayısı:	≥ 10	Dış mekan:	Dış fiber optik kablo
Merkezi Güç Üyesi:	FRP veya Çelik Tel	Su kabı malzemesi:	Su engelleme bandı veya doldurma bileşiği
zırh:	Oluklu Çelik Bant zırhı	Kablo Boyutu:	8mm ~ 16mm
Çekirdek:	alıcının isteğine göre	Kablo yapısı:	Çoklu Gevşek Borulu Çelik Bant zırhı
GZS:	45-80 KN	Çalışma sıcaklığı:	-40 ° C ila +70 ° C
Oem:	Kabul edilebilir	Garanti:	25 yıl
Gevşek tüp:	PBT	Model:	Zırhlı Fiber Optik Kablo
Ceket malzemesi:	Pe	Fiber modeli:	SingLemode/Multimode
Çekirdek:	12-144	haberci çapı:	5.0mm
Dış Ceket Rengi:	Siyah	Kılıf:	HDPE
Kaldırma Süresi:	20 Yıldan Fazla	Gevşek Tüp Malzemesi:	PBT
Yapılandırıcı:	merkezi gevşek tüp	İç kılıf malzemesi:	PE/YYPE
Örnek:	Özgür	Çekirdek numarası:	6 scores/8cores/12 scores
Güç üyesi:	çelik tel	Kablo tipi:	Gevşek tüp
Vurgulamak:	96 core microduct fiber cable , air blown outdoor fiber optic , loose tube high speed cable

Ürün Açıklaması

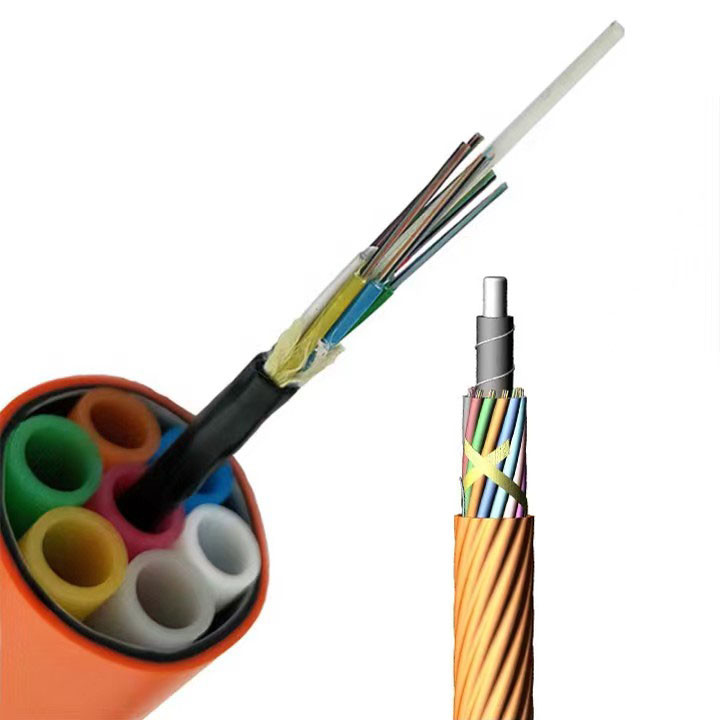

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.

1. Model: GCYFY-96B1.3

2. Cable Cross-section

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.

Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

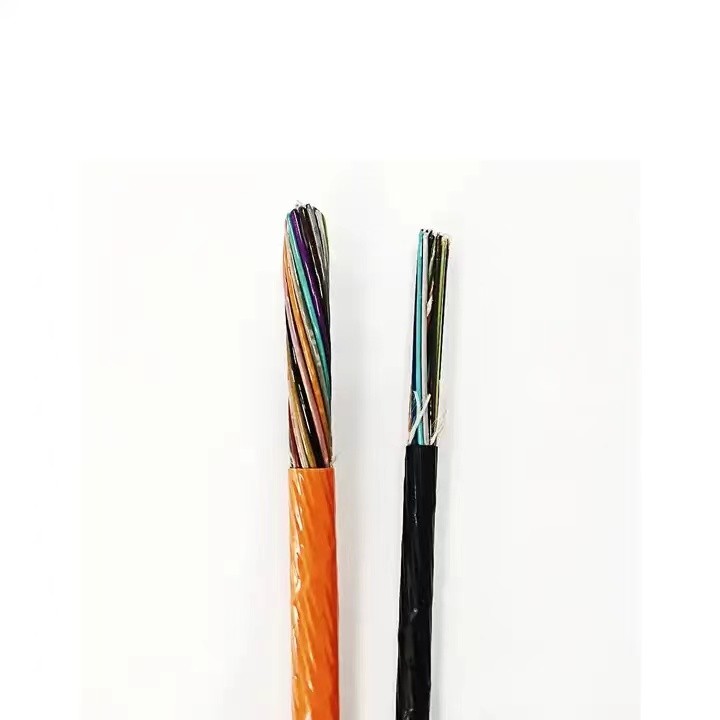

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3

FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.

Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.

Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.

Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.

Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.

Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.

Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
